Inverter Mitsubishi (FR-E700)

Mitsubishi FR-E700

มีผู้ชม 5986 ครั้ง

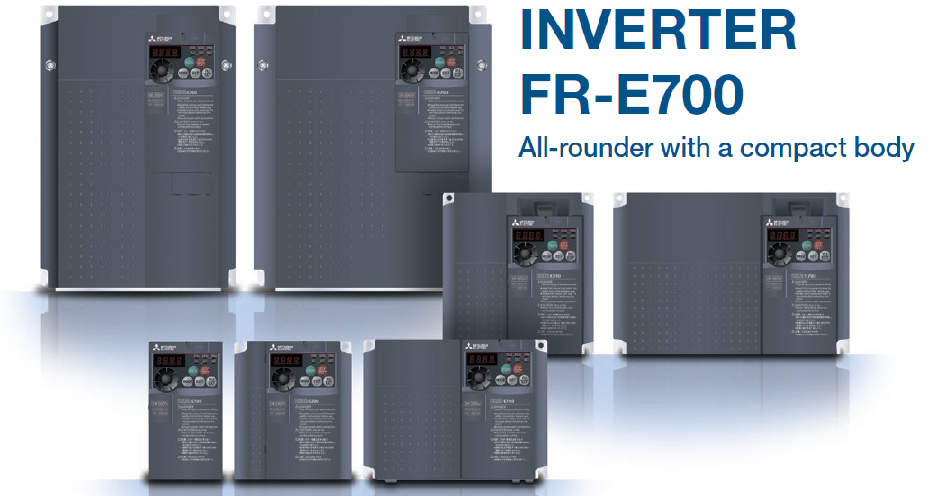

Inverter Mitsubishi (FR-E700)



Mitsubishi Inverter FR-E700 Series
A special redundant circuit in FR-E700 allows the elimination of a dedicated
emergency stop contactor, reducing installation cost and installation space.
FR-E700 can be installed in a cabinet 'bookshelf style', reducing total installation
space inside the control panel.



FR-E700SC Series Variable Frequency Drives

The FR-E700SC VFD offers the motor performance usually associated with
high power sensorless vector control motor drives in a compact drive package.


Key Benefits
  • Safety drive capability - Eliminate the need for an extra contactor for operator safety
  • Built-in MODBUS® RTU communications – Seamless integration into control systems
  • 120:1 speed range – Fast acceleration and excellent motor starting torque for heavy loads
  • Auto-tuning capability – Maximize the performance of 3rd party motors quickly and easily
  • Integral USB port – Allows quick and simple set-up from a PC
  • Built-in dynamic braking circuit – Allows for simple installation of brake resistors for heavy deceleration
  • Multiple communication options – Communicate with the drive over a wide range of fieldbusor Ethernet networks
Boxes on Conveyor
Fast Set-up
The built-in USB port in the FR-E700 Series drives enables fast and simple programming and diagnostics
via FR Configurator software. Set all drive parameters without powering up the drive using the FR-PU07BB battery
powered parameter keypad.

E700 USB Port

Easy Integration
FR-E700 is compatible with a host of option cards, allowing it to be integrated into complex systems.
Communication over factory fieldbus or Ethernet networks is a breeze.

E700 Product Blowup

Safety Drive
A special redundant circuit in FR-E700 allows the elimination of a dedicated emergency stop contactor,
reducing installation cost and installation space.

E700 Safety Stop Function

Bookshelf Mounting
FR-E700 can be installed in a cabinet ‘bookshelf style’, reducing total installation space inside the control panel.

E700 Bookshelfing

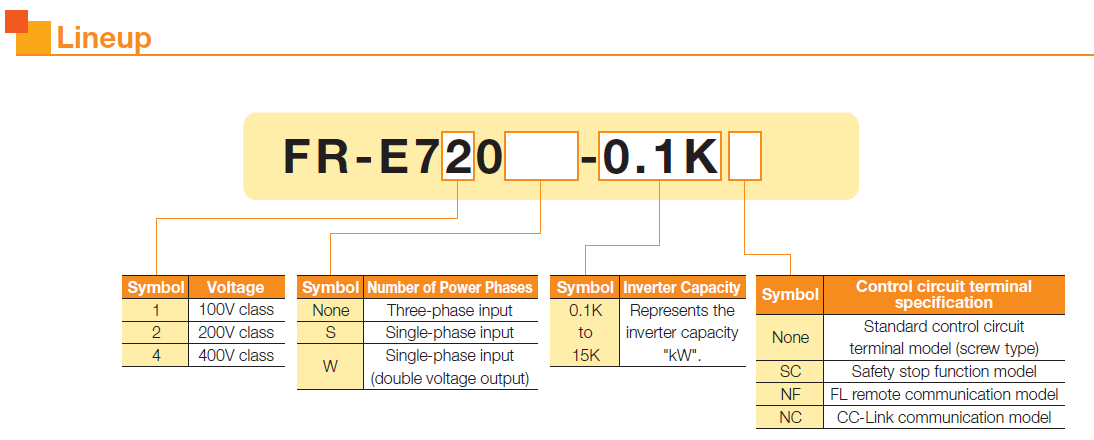

Inverter FR-E700 Model

3 Phase 380 Vac. Class
FR-E740-0.4K      3Ph.380Vac. 0.4kW.
FR-E740-0.75K    3Ph.380Vac. 0.75kW.
FR-E740-1.5K      3Ph.380Vac. 1.5kW.
FR-E740-2.2K      3Ph.380Vac. 2.2kW.
FR-E740-3.7K      3Ph.380Vac. 3.7kW.
FR-E740-5.5K      3Ph.380Vac. 5.5kW.
FR-E740-7.5K      3Ph.380Vac. 7.5kW.

3 Phase 220 Vac. Class
FR-E720-0.1K      3Ph.380Vac. 0.1kW.
FR-E720-0.2K      3Ph.380Vac. 0.2kW.
FR-E720-0.4K      3Ph.380Vac. 0.4kW.
FR-E720-0.75K    3Ph.380Vac. 0.75kW.
FR-E720-1.5K      3Ph.380Vac. 1.5kW.
FR-E72-2.2K        3Ph.380Vac. 2.2kW.
FR-E720-3.7K      3Ph.380Vac. 3.7kW.
FR-E720-5.5K      3Ph.380Vac. 5.5kW.
FR-E720-7.5K      3Ph.380Vac. 7.5kW.
FR-E720-11K       3Ph.380Vac. 11kW.
FR-E720-15K       3Ph.380Vac. 15kW.

Input 1 Phase 220 VAC   Class
FR-E720S-0.1K     1Ph.220Vac. 0.1kW.
FR-E720S-0.2K     1Ph.220Vac. 0.2kW.
FR-E720S-0.4K     1Ph.220Vac. 0.4kW.
FR-E720S-0.75K   1Ph.220Vac. 0.75kW.
FR-E720S-1.5K     1Ph.220Vac. 1.5kW.
FR-E720S-2.2K     1Ph.220Vac. 2.2kW.




ขาย,อินเวอร์เตอร์,อินเวอร์เตอร์,มิตซูบิชิ,จำหน่ายInverter,Mitsubishi Inverter,Mitsubishi,FR-E700,NVERTER
