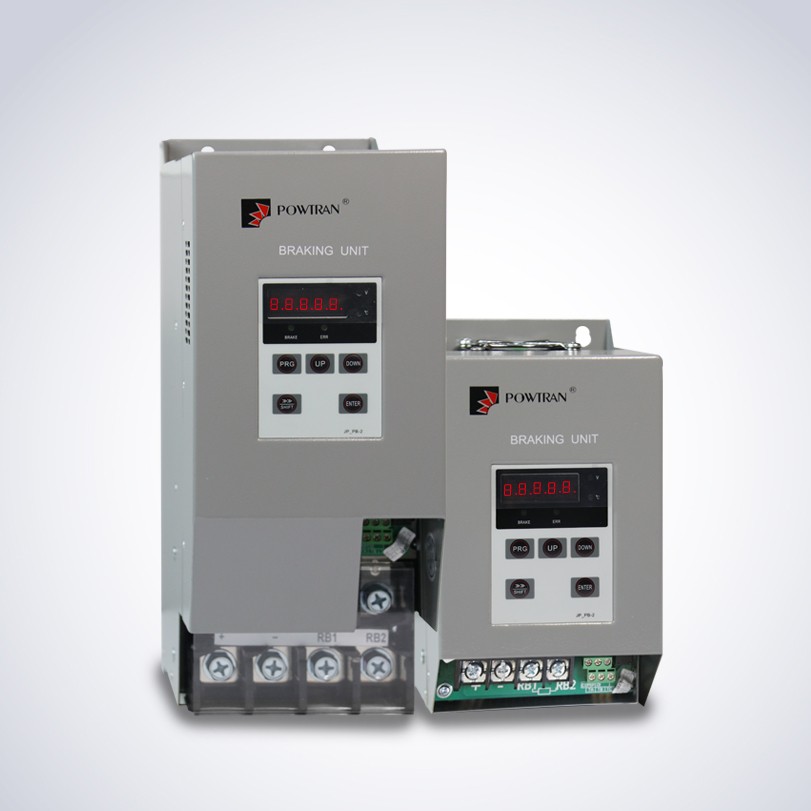

BRAKING UNIT POWTRAN

POWTRAN PB200

มีผู้ชม 77 ครั้ง


รหัสสินค้า : PB200 Brake unit ราคา ฿12,000.00THB จำนวน

The PB200 series brake unit is designed by Powtran with advanced concept, it is a new type of inverter controlled motor which has increased the function of the keyboard.With excellent control performance and high reliability, can easily read the setting of various parameters;The function of the hardware and software is redesigned, and the function of current sampling is added.Over current, overload, short circuit, IGBT direct protection functions, the operation is reliable and stable.Increase the voltage tracking brake, the braking process is more smooth; increase the forced air cooling,Independent air duct design, fan external maintenance, with the function of the master and slave machine, more convenient for the brake unit to be used in parallel

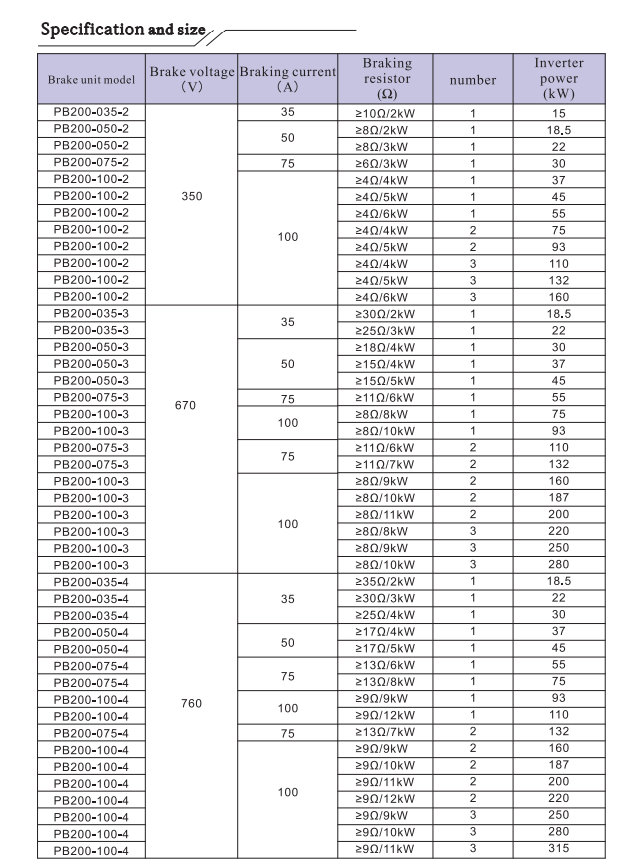

Technical Data

**Technical specifications**
Brake unit model	Starting brake voltage (V)	Maximum continuous braking current (A)
PB200-040-2	350	40
PB200-050-2	350	50
PB200-075-2	350	75
PB200-100-2	350	100
PB200-180-2	350	180
PB200-250-2	350	250
PB200-40-3	670	40
PB200-50-3	670	50
PB200-75-3	670	75
PB200-100-3	670	100
PB200-180-3	670	180
PB200-250-3	670	250
PB200-40-4	760	40
PB200-50-4	760	50
PB200-75-4	760	75
PB200-100-4	760	100
PB200-180-4	760	180
PB200-250-4	760	250
